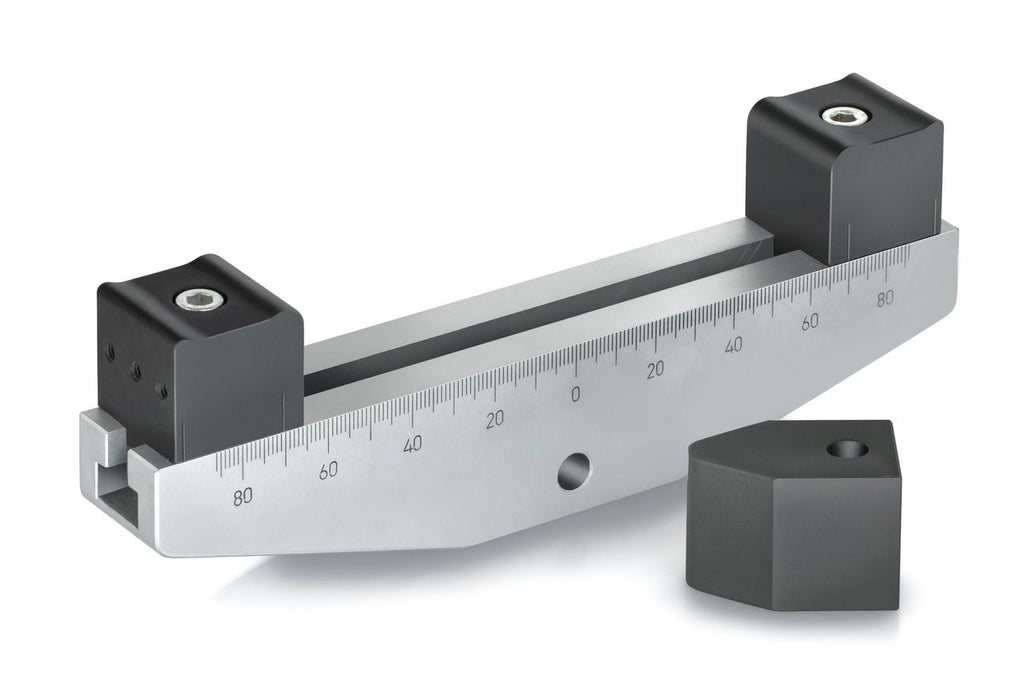

AD 9305 Small 3 Point Bending Device [Anodised aluminium]

Up to 2.5kN
Central Scale 80-0-80mm
Consisting of one support beam, two support brackets and a curved fin each with permanently fixed radi, radius of the fin is 3.2mm, radi of the support brackets is 3.2 + 5mm, other radi on request
Gap between the two support brackets 4-150mm
Width of brackets 30mm
1 Pieces
