sauter

Threaded sleeve made of steel for SAUTER force gauges and clamps, external thread: M10, internal thread: M8 thread Material: Steel Piece 1

Threaded sleeve made of steel for SAUTER force gauges and clamps, external thread: M12, internal thread: M18 thread Material: Steel Piece 1

Threaded sleeve made of steel for SAUTER force gauges and clamps, external thread: M12, internal thread: M18 x 1.5 thread Material: Steel Piece 1

Mounting Back Plate for Sauter Force Gauge Stands Material: Steel Piece 1

AHBA-01 7 off Hardness Comparison PlatesHardness comparison plates for Shore A, tolerance up to ± 2 HA Suitable for SAUTER-models HB and HD

AHBD-01 3 off Hardness Comparison PlatesHardness comparison plates for Shore D, tolerance up to ± 2 HD Suitable for SAUTER-models HB and HD

AHMO D External impact sensor Type D Type D, Leeb Standard sensor can be reordered anytime

AHMO D01 Impact Body Type D, Net Weight approx. 5.5g hardness ≥ 1600 HV Material: tungsten carbide, Impact ball ∅3 mm, in accordance with the stand...

AHMO D02 Test block Type D/DC hardness range 790 ± 40 HL accuracy > 4 HL ∅ 90 mm (±1 mm) Net weight approx. 2,7 kg

AHMO D03 Test block Type D/DC hardness range 630 ± 40 HL accuracy â>=  4 HL Ø90 mm (±1 mm) Net weight approx. 2,7 kg

AHMO D04 Test block Type D/DC hardness range 530 ± 40 HL accuracy  >= 4 HL Ø 90 mm (±1 mm) Net weight approx. 2,7 kg

AHMR 01 Support Rings Attachment rings for secure positioning

AHMR C External Impact Sensor External impact sensor Type C, Low energy sensor: requires only 25 % impact energy compared to type D For testing tin...

AHMR DL External impact sensor Type DL External impact sensor Type DL, for very narrow surfaces (∅ 4,5 mm)

AHMR G External impact sensor Type G External impact sensor Type G. High energy sensor: 900 % impact energy compared to type D

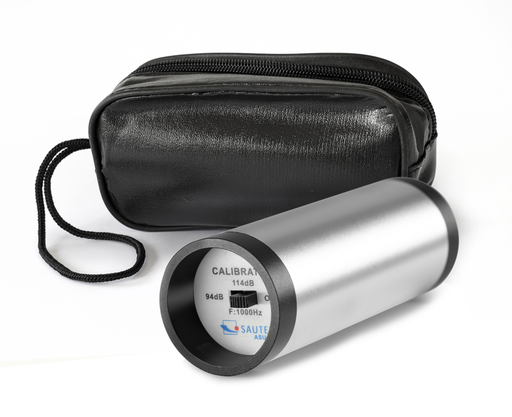

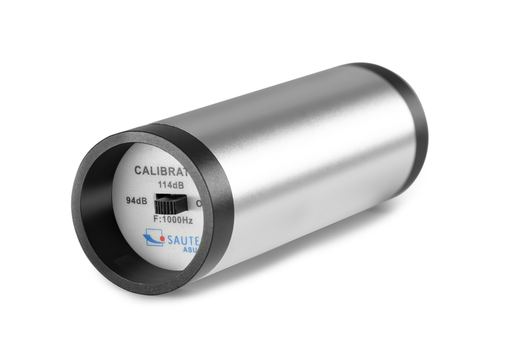

Adjustment device for regular adjustment of the sound level meter Dims: 8 × 6 × 18cm

ATB-US01 External sensor, 5 MHz, ∅ 6 mm for thin test materials: measuring range (steel) 1-50 mm Replacement sensors TB-US, TD, TN-US, TU-US model...

ATB-US02 External sensor, 5 MHz, ∅ 12 mm for hot test materials: measuring range (steel) - 1-225 mm at normal temperatures - 4-100 mm at temperatur...

ATB-US03 Ultrasound contact gel, approx. 70ml

ATB-US06 External sensor, 5 MHz, ∅ 8 mm Replacement sensors TB-US, TD, TN-US, TU-US models are supplied with a sensor only purchase if a replacemen...

Calibration foils for increased measuring accuracy (covers the range from 20 up to 2000 µm, with < 3 % tolerance)

ATE 01 Sensor, Type F for TE and TB Gauges Replacement sensors TE & TB models are supplied with sensor only purchase if a replacement is requ...

ATE 02 Sensor, Type N for TE & TB Gauges Replacement sensors TE & TB models are supplied with sensor only purchase if a replacement is req...

ATG 01 Sensor, Type FN for TG 1250-0.1FN Model Replacement sensors TG 1250-0.1FN model is supplied with sensor only purchase if a replacement is r...
