OZP-5 Stereo Zoom Microscope

Features

The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours.  The KERN OZP series is available as a strong, continuously adjustable 3 W LED reflected and transmitted light variant for the very best illumination of your sample or as a variant without illumination.

With its large working distance, an extra large field of view and brilliant resolution,

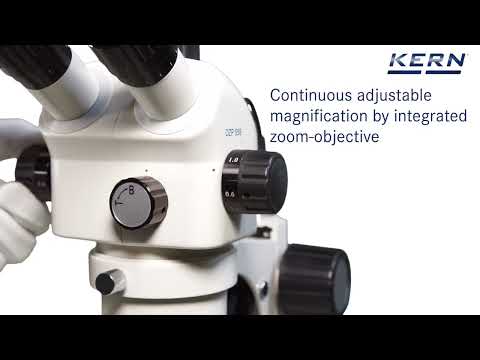

the KERN OZP provides sharp, high-contrast and colour-true images.  The extremely large, continuously adjustable magnification range from 6 to 55 times magnification means that you can work quickly and effectively.

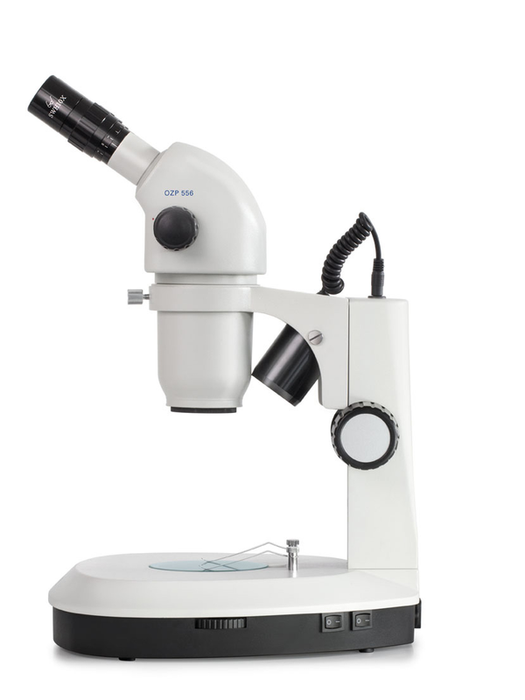

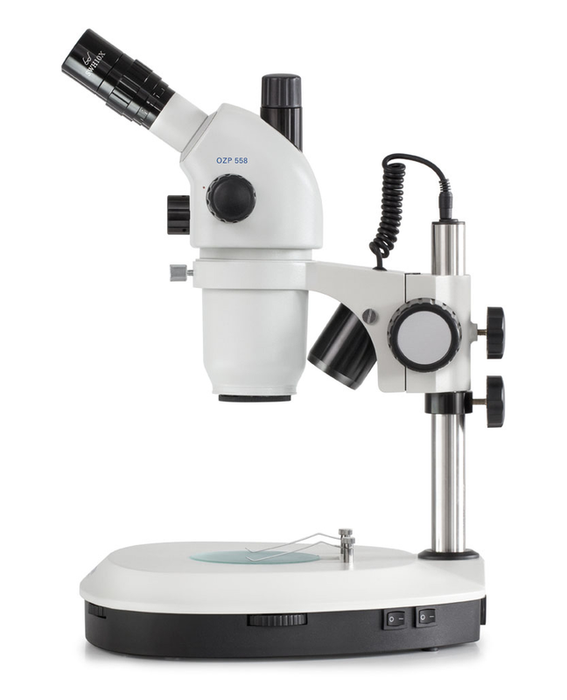

There is a choice of a binocular model as well as a trinocular model for connecting a
camera for documentation purposes and for quality reports.  The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.

A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination
units as well as auxiliary objectives and more are available as accessories.  A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.  A C-mount adapter is required to connect a camera to the trinocular version.

Scope of application

Zoology and botany, quality control, electronics and semiconductor industry, assembly and repair

Applications/Samples

Samples with focus on three-dimensional impression, zoom with variable magnification
(depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

Optical system: Greenough optics
Brightness adjustable (separate)
Tube: 35° inclined
Magnification ratio: 9,2:1
Light distribution OZP 557/558: 100:0
Interpupillary distance 52 – 76 mm
Diopter adjustment: Both-sided
Overall dimensions W×D×H 330×285×470 mm
Net weight approx. 4,5 kg
