Kern OPO 185 Polarising Microscopes

Features

This device is a professional, fully-equipped polarising microscope, which uses the
polarisation of light to analyse minerals, crystals and isotropic materials.  The KERN OPO 185 is a combi variant of LED incident illumination and LED transmitted illumination. A height-adjustable 0.9/0.13 Swing-out Abbe condenser which can be centred for complete Köhler illumination are part of the standard version.

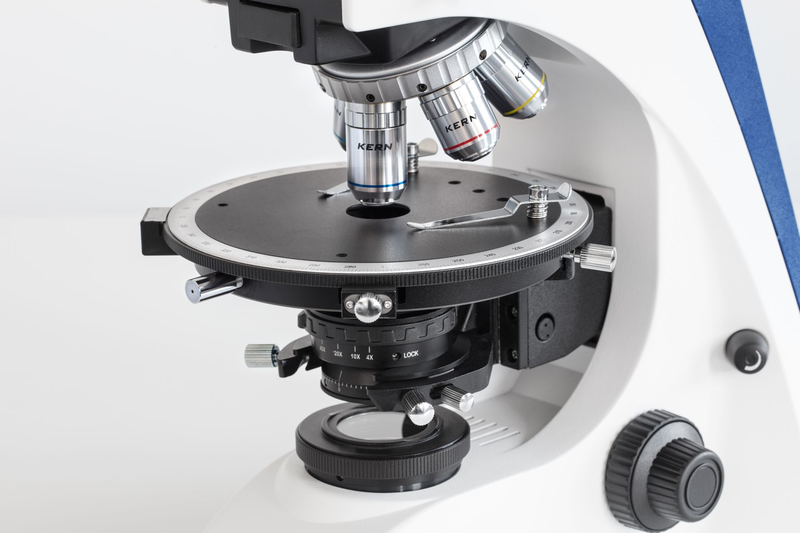

A 360° revolving stage with 1° division, 6' fine division and locking function is integrated
into all series as standard. As standard all series are fitted with a complete polarising unit with scale, a Bertrand lens, a λ + ¼ λ Slip as well as a quartz wedge.

A large selection of accessories such as, for example, a mechanical stage attachment as
well as further objectives for a long working distance and filter units are also available.
A protective dust cover, eye cups, as well as multi-lingual user instructions are included
in the scope of delivery
A C-Mount adapter is required to connect a camera. You can select this adapter from
the accessories list

Scope of application

Mineralogy, texture observations, material testing, observation of crystals

Applications/Samples

More complex samples with polarising properties

Technical data

Infinity optical system
Quintuple nosepiece
Siedentopf 30° inclined
Diopter adjustment: Both-sided
Overall dimensions W×D×H 500×200×500 mm
Net weight approx. 14,5 kg
