Kern OLM-1 Metallurgical Inverted Microscopes

Features

The KERN OLM range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry

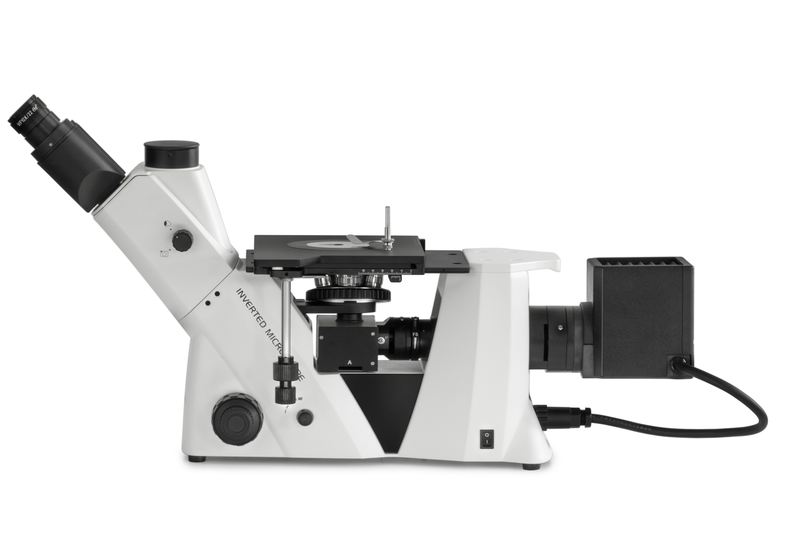

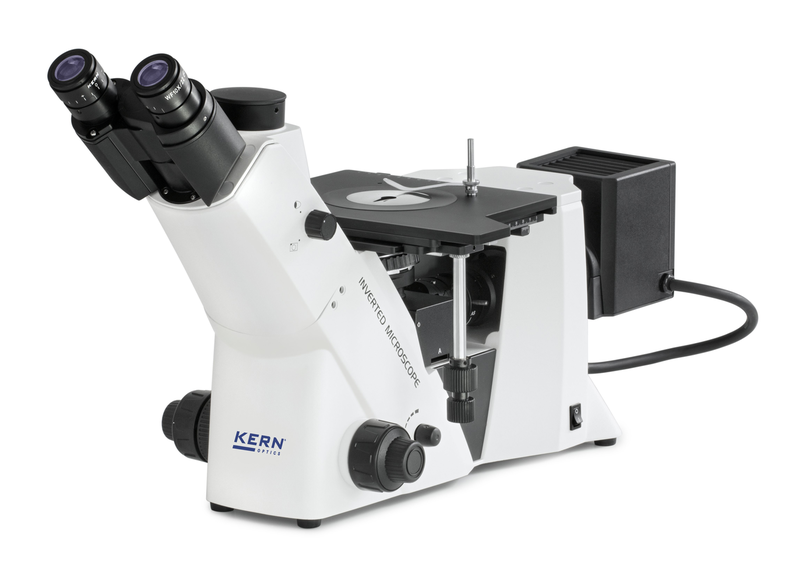

Depending on the application, you can choose from models with a powerful, continuously dimmable 5W LED or a 50W halogen incident light illumination, which ensure optimum illumination of the materials to be tested

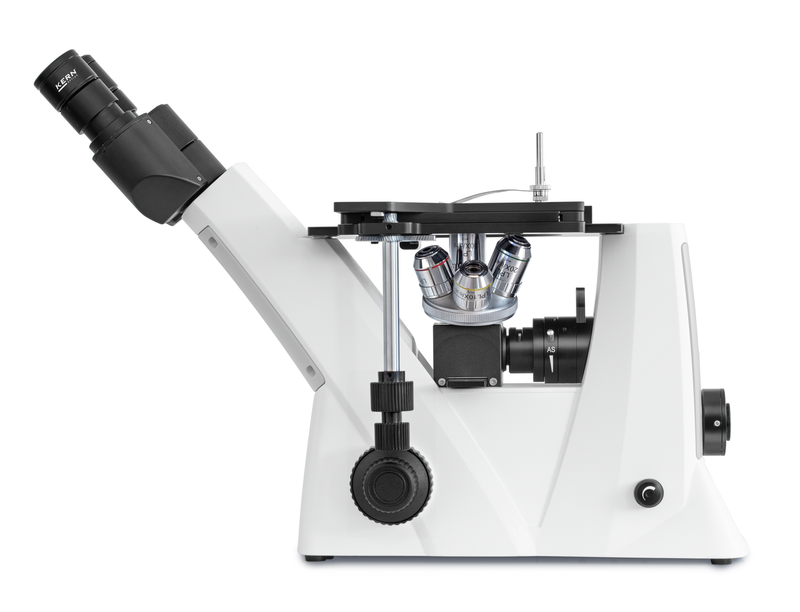

As standard, the OLM range is fitted with a trinocular eyepiece tube.  A simple polarising unit (analyser and polariser) is included with delivery.  The compact design of the OLM 170 allows the user easier and more flexible handling, so that this model can also be considered for mobile use.

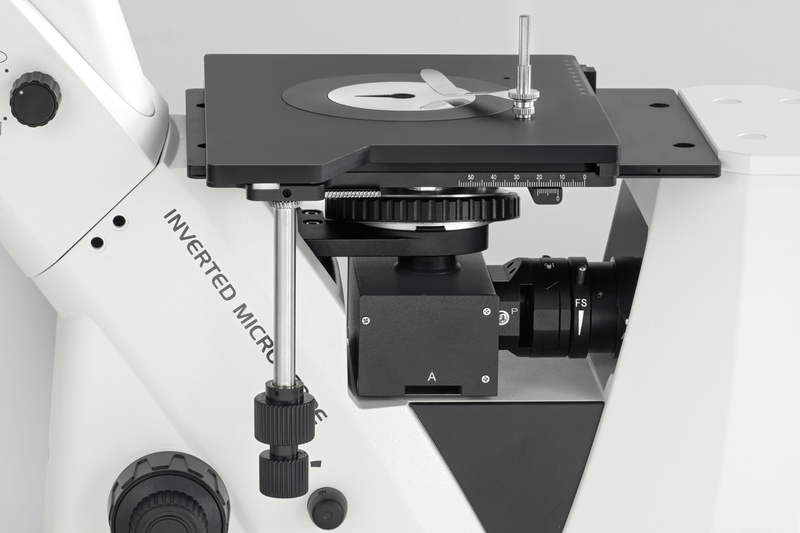

A large mechanical stage is included with delivery as standard. The coarse and fine
focusing knob on both sides guarantees optimal adjustment and focusing.  Further options such as, for example, a large selection of objectives can be integrated as
accessories.  A dust cover as well as user instructions are included with the delivery

Scope of application

Metallurgy, material testing, quality assurance

Applications/Samples

Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

Technical data

Infinity optical system
Quintuple nosepiece
Siedentopf 30° inclined
Diopter adjustment: Both-sided
Overall dimensions W×D×H 271×379×747 mm
Net weight approx. 12,5 kg
