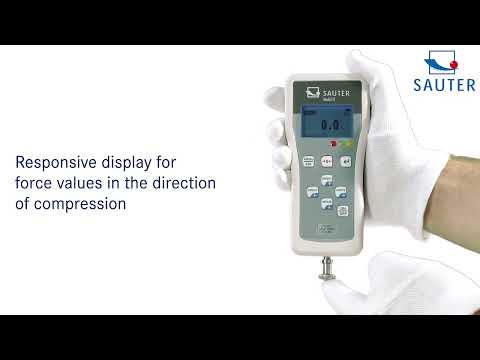

FL-S Premium Digital Force Gauge

FL series of premium digital force gauges with graphical assisted display have been designed to be easy to use, the painted metal case is ergonomically engineered to be comfortable for manual use, but easily used on test stands both mechanical and motorised. Ideal for simple manual push or pull applications and when used with test stands, more complex measurements.

The FL series gauges have a sampling rate of 1000Hz and an accuracy of 0.2% of the capacity of the gauge coupled with an overload protection of 120% of full scale. Rechargeable internal battery powered with auto power off function to conserve battery life adds to the practical use of this device. The large clear graphical LCD display is reversible to make reading the results easy when gauge is inverted. Real Time or Peak Hold to observe transient or capture peaks, metal casing for durability in harsh environments.

FL has a 500 measurement memory, so data can be downloaded later via the RS-232 or USB connections. Continuous Analogue output 0-2V, linear to the load applied. The ability to select Min/Max Limits in both push and pull directions with acoustic and optical signals. Unit is supplied in a hard carry case.
