ODC 241 Microscope camera
- Digital microscopy brought up-to-date - Tablet with integrated camera for the very best monitoring of the sample as well as digital documentation
Data Sheet
Manual
Description:
Features
A 2-in-1 solution in digital microscopy as a universal system for trinocular microscopes

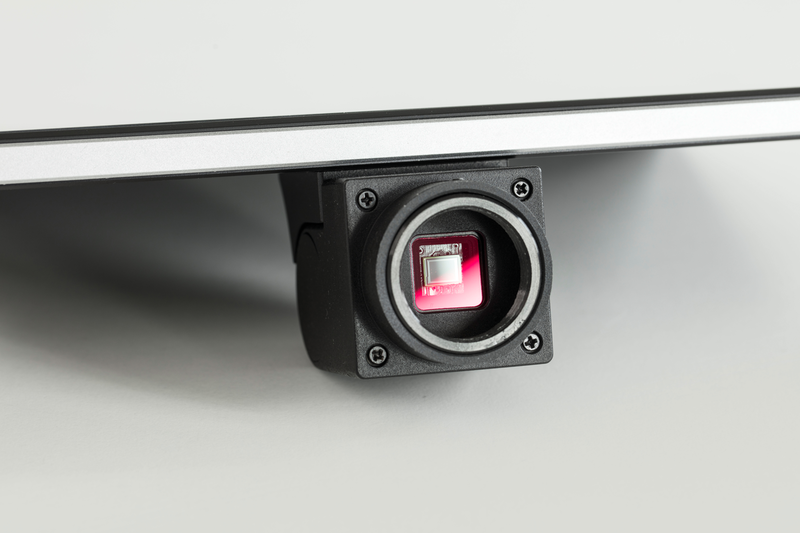

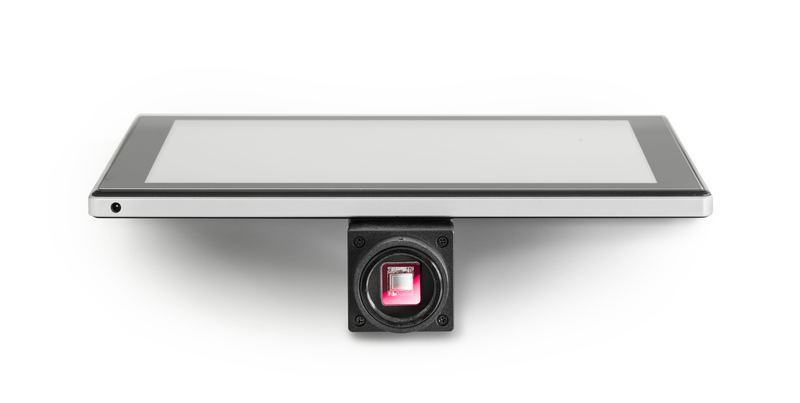

with C-mount adapter. The ODC 241 microscope-tablet-camera consists of a large Android tablet in combination with a 5-MP camera.
The KERN ODC 241 tablet-camera has been specially developed for simple and direct
observation of the sample on the screen. Ideally suited for school pupils and students
in education or for demonstration purposes in the laboratory.
As well a live transfer of the image to the Android table, the integrated 5-MP camera

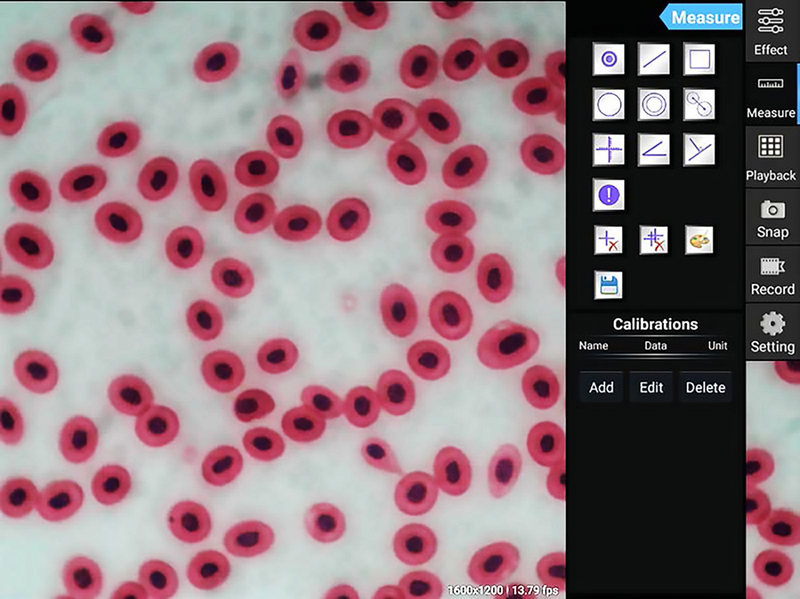

also means that images and videos can be created for the documentation. Simple measuring functions such as, for example, functions for measuring distance, surfaces and angles as well as a manual counting function are also available.
Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures. A range of additional functions are provided through the integrated interfaces, such as, for example
- Data storage on a USB stick or SD card
- Connection to a USB mouse
- Transfer of the live image to an external screen using HDMI
- Transfer of stored data to external receivers using WiFi
The delivery includes the tablet camera with pre-installed software as well as the mains adapter.
Tablet Camera KERN ODC-2
Technical data
9.7" LCD-Touchscreen
Screen resolution: 2048×1536 pixels
CPU: Quad Core Cortex-A17; 1,8 GHz
Overall dimensions W×D×H 238×51×206 mm
Net weight approx. 0,65 kg
